The easiest kitchen faucets to install

Almost nothing written about easy-to-install faucets quotes a specification, which is odd, because the manufacturers publish exactly the facts that decide the job. Three of them matter: how the water connections are made, whether the faucet can cover the holes your sink already has, and how many separate pieces have to be held in place at once. Everything else is cabinet access and patience.

Quick picks

Tap any row to jump to the full write-up. There are no scores here because we run no test lab — how picks are chosen is published in full on our methodology page.

#	Product	Best for	Our read	Price
1	Moen Arbor 7594 Easiest overall	Deep pots and hard-water kitchens	Duralock quick connect, and the deck plate is in the box	Check price on Amazon→ #ad Affiliate link · We publish no price; Amazon shows the current one
2	Delta Leland 9178-AR-DST Fewest connections to make	Most kitchens, one or three holes	InnoFlex supply lines arrive attached to the valve	Check price on Amazon→ #ad Affiliate link · We publish no price; Amazon shows the current one
3	Moen Renzo CA87316C Easiest in a shallow cabinet	Low window sills and tight clearance	Duralock on a 5.56-inch spout, deck plate included	Check price on Amazon→ #ad Affiliate link · We publish no price; Amazon shows the current one
4	Moen Sombra 87701SRS Best for an old three- or four-hole sink	Pull-out range plus a matching dispenser	Mounts through one to four holes, dispenser included	Check price on Amazon→ #ad Affiliate link · We publish no price; Amazon shows the current one
5	RIDGID Model 1017 telescoping basin wrench The tool none of them replaces	Any faucet removal or install	Telescopes from 10 to 17 inches behind the sink	Check price on Amazon→ #ad Affiliate link · We publish no price; Amazon shows the current one

A faucet swap is four distinct jobs, and only two of them are affected by which faucet you buy. Shutting off the water and removing the old faucet depend entirely on the state of your shutoff valves and mounting nuts — a twenty-year-old nut will be just as stubborn whichever new faucet is waiting in the box. The new faucet changes the other two: mounting it, and connecting it.

• A named quick-connect system on the supply side, so the hose joins the valve by push-fit instead of a wrench-tightened coupling you cannot see.
• Pre-attached supply lines, which remove one threaded joint per side entirely.
• A deck plate — escutcheon — in the box, so a single-hole faucet covers a three-hole sink without buying a separate part.
• Single-handle and single-hole, because a widespread or bridge faucet means aligning two or three separate bodies through separate holes at the same time.
• Low weight, so the faucet can be held in place from above while the nut is started from below. No maker publishes a figure for the faucet alone, so this one you judge by lifting the box.

Two manufacturers put a name and a warranty behind their connection system, and they solve different ends of the same problem. Moen's Duralock quick connect joins the faucet's hose assembly to the valve body with a push-fit — Moen's own product pages describe it as being "for easy installation", and it appears on the Arbor 7594, the Renzo CA87316C and the Method 7585C. Delta's InnoFlex goes further back up the chain: the supply lines are PEX, integrated, and already attached at the valve when the faucet comes out of the box, which Delta publishes as being "for faster installation".

The practical difference is the number of joints you make lying on your back. With pre-attached InnoFlex lines, each side is one connection: faucet line to shutoff valve. Without them, it is two: a supply line onto the faucet's tailpiece, then the other end onto the valve — and the tailpiece joint is the one at the back of the cabinet where you cannot get both hands.

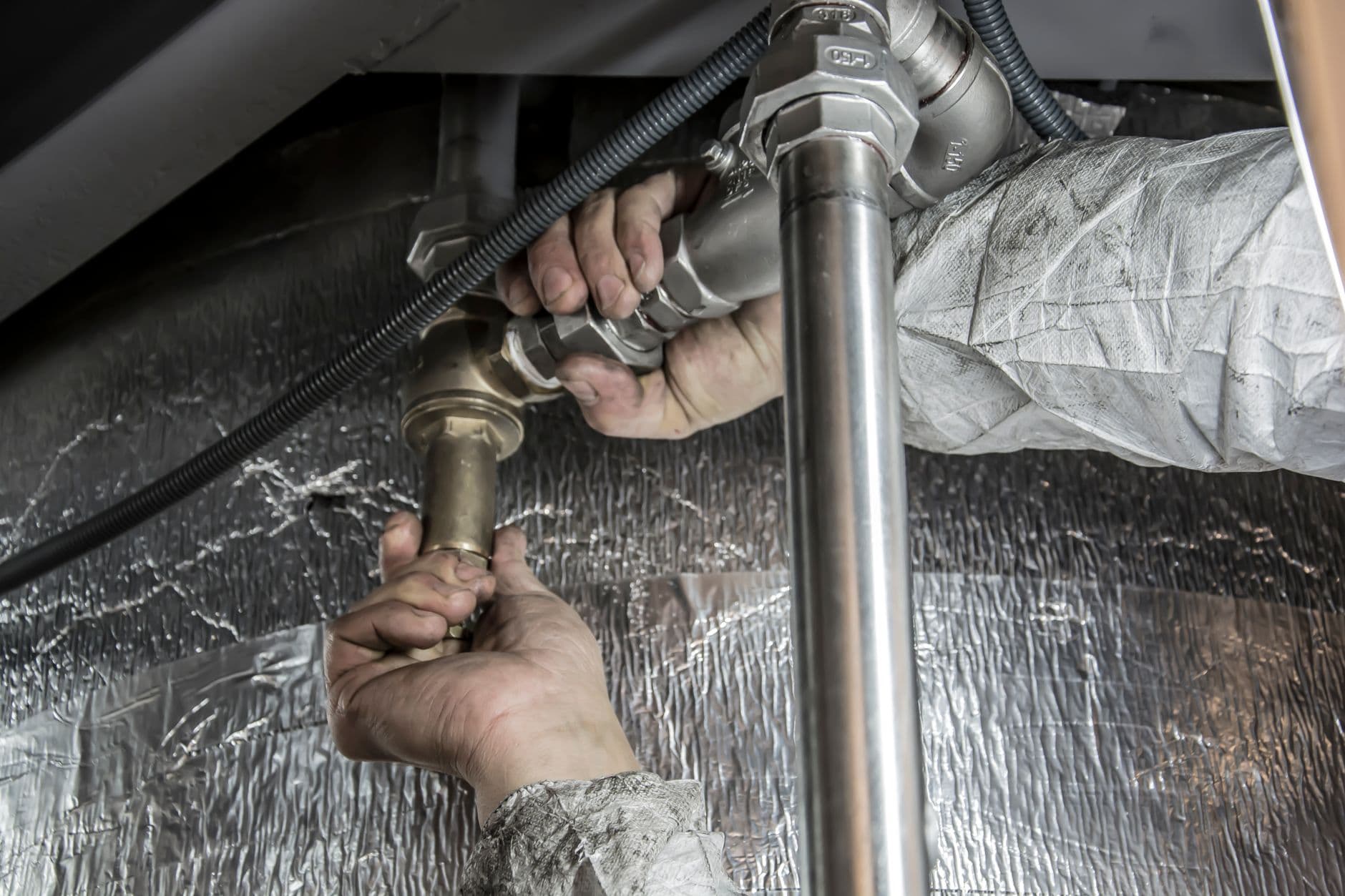

All four faucets here use 3/8-inch compression connections, which is the standard American sink supply fitting, so your existing supply lines or shutoff valves will match. That matters more than it sounds: a faucet with a non-standard fitting means a trip back out for an adapter in the middle of the job.

Most kitchen sinks sold before the last decade were drilled with three holes: faucet in the middle, side spray and air switch or soap dispenser either side. Most faucets sold now need one. The bridge between those two facts is the deck plate, and whether it is in the box is the difference between a faucet that fits your sink and a faucet that needs a second order.

Delta publishes the Leland 9178 as fitting "up to a 1 or 3-hole mount, 8 in. center configurations". Moen publishes one-or-three-hole mounting with the deck plate included on the Arbor and the Renzo. The Sombra 87701SRS goes further and covers one to four holes, which is the configuration that defeats most single-hole faucets — and because it ships with a matching soap dispenser, a spare hole can be filled rather than hidden. If you are not sure what your sink is drilled for, count the holes and read faucet hole configurations before ordering anything.

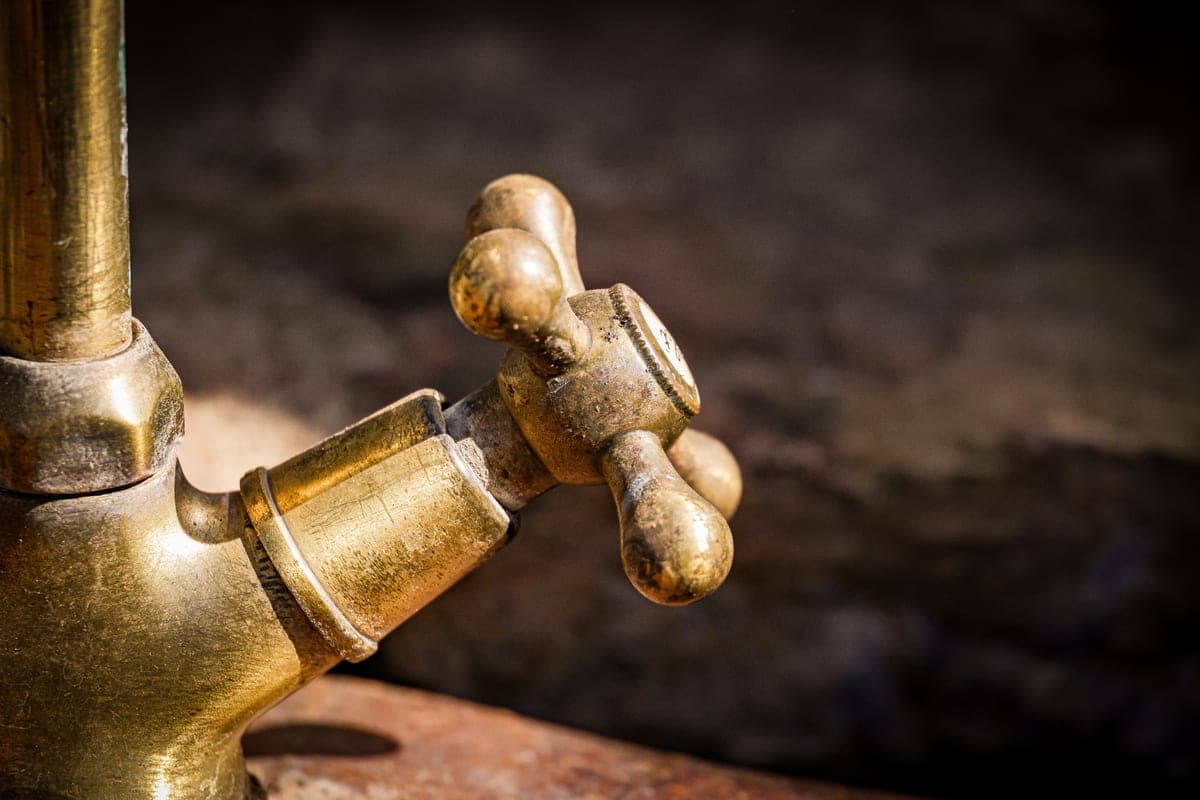

The hard end of this scale is worth naming so you can avoid it. A bridge faucet mounts through two holes on fixed 8-inch centers with the spout spanning between them, which means no deck plate can rescue a mismatch — the sink either has the drilling or it does not. They are beautiful and they are the wrong first install; see bridge kitchen faucets for what that configuration demands.

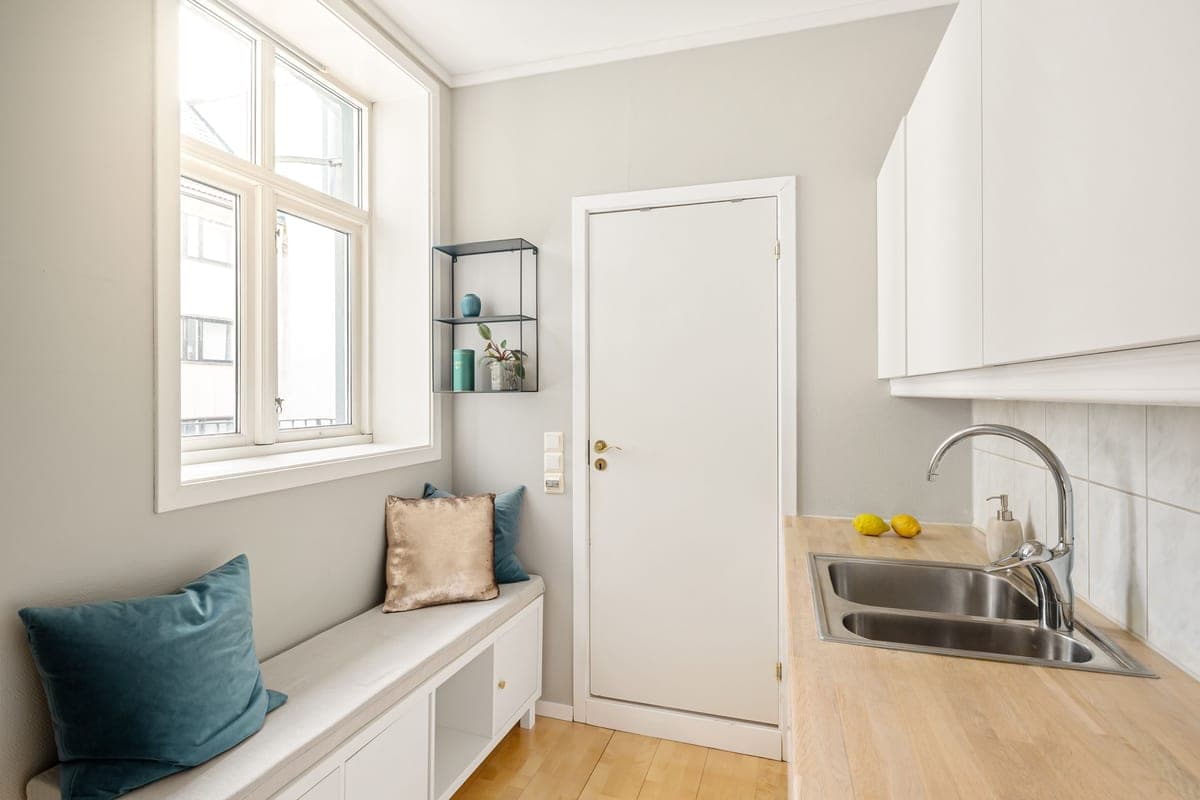

Installation ease is not only about the connections. A sink under a window or beneath a wall cabinet has limited clearance above the deck, and a 15-inch arc that technically mounts but cannot have its wand lifted out of the dock is a failed installation you only discover at the end.

The Renzo CA87316C is the answer to that specific problem: Moen publishes a 5.56-inch spout height with 9.63 inches of reach, so it clears a sill without giving up the ability to reach the far side of the basin. Measure deck-to-sill, subtract an inch for lifting the wand clear, and shop to that number — the method is set out on our height and reach guide.

Photograph shows the product category, not this specific unit. We do not republish manufacturer product photography.

1. Easiest overall

Moen Arbor 7594

Moen · Best for deep pots and hard-water kitchens

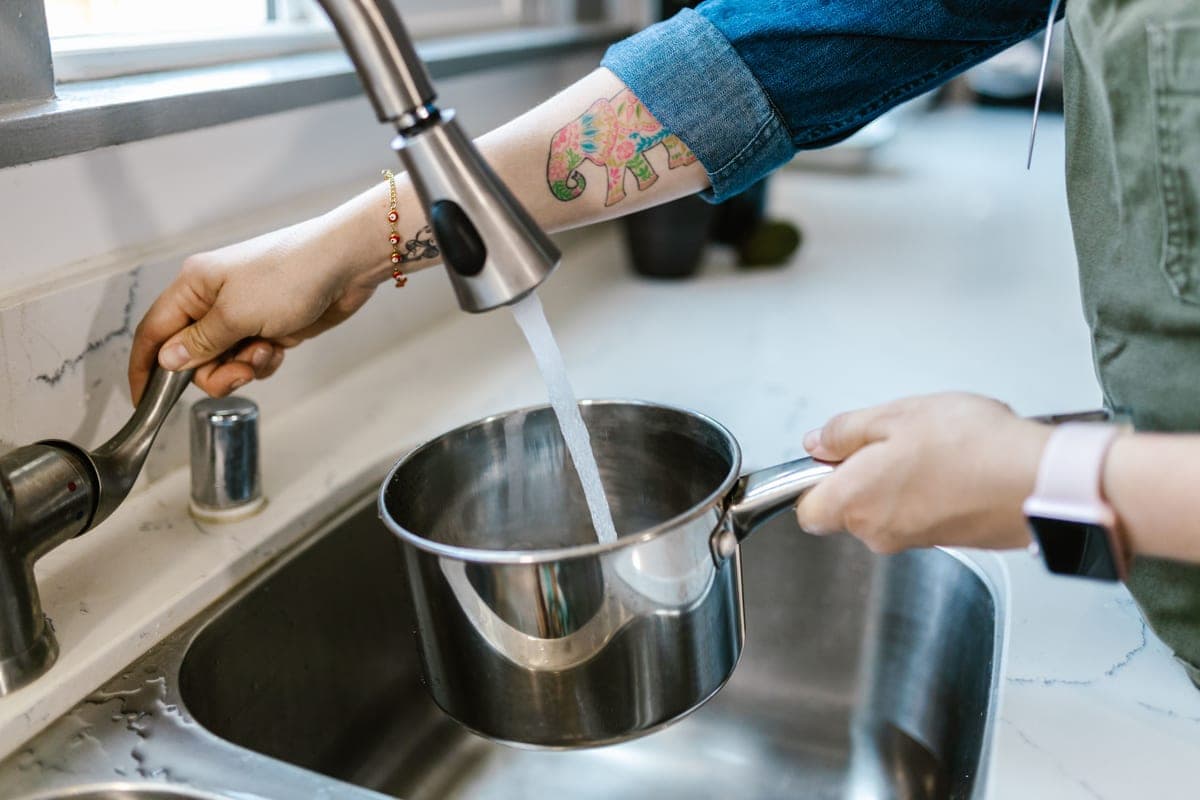

The pull-down to buy if you want the taller arc and a finish that hides water spots. Its 8-1/4" spout height is about half an inch more clearance than the Leland, which is the difference between washing a stock pot and fighting one. The tradeoff is reach: 7-7/8" against 9-3/16", so it works closer to the back of the bowl.

Published specifications

Flow rate

1.5 gpm source

Spout height

8-1/4" counter to outlet source

Spout reach

7-7/8" source

Overall height

15-1/2" source

Mounting

One or three holes; deck plate included source

Installation

Duralock quick connect source

Connection

3/8" compression source

Docking

Reflex spray-head docking source

What works

• +The 8-1/4" spout height is genuine pot clearance, not decorative arc
• +Power Boost concentrates the stream for filling and rinsing without raising the rated flow
• +Spot Resist Stainless is the single most useful finish choice in a hard-water house
• +Reflex docking has been in Moen's line long enough that replacement wands are easy to find

What does not

• −Reach is 7-7/8", over an inch shorter than the Leland — on a wide double bowl you will notice
• −Moen publishes no independent noise or durability measurement, and neither do we
• −The spot-resist coating is a finish, not armor; abrasive cleaners still dull it

Skip it if

Skip it if you have a wide double-bowl sink and want one faucet to reach both drains comfortably — buy reach instead of height.

Check price on Amazon→

#ad Affiliate link · We publish no price; Amazon shows the current one

Raw specifications: Moen’s own page for the Moen Arbor 7594.

Photograph shows the product category, not this specific unit. We do not republish manufacturer product photography.

2. Fewest connections to make

Delta Leland 9178-AR-DST

Delta · Best for most kitchens, one or three holes

The pull-down we would fit in most kitchens, because the two parts that usually fail first on a pull-down are the two Delta engineered around: the docking mechanism and the valve. MagnaTite pulls the wand back into the spout with a magnet instead of relying on a friction collar, and Diamond Seal keeps water off the valve. It ships with a deck plate, so it covers a three-hole sink or mounts through one.

Published specifications

Flow rate

1.8 gpm source

Spout height

7-7/8" deck to outlet source

Spout reach

9-3/16" source

Overall height

14-7/8" source

Mounting

Single hole; deck plate included for three-hole sinks source

Supply lines

Integrated InnoFlex PEX, pre-attached at the valve source

Connection

3/8" compression source

Warranty

Delta limited lifetime source

Lead compliance

Meets NSF/ANSI 61 source

What works

• +MagnaTite docking is a magnet, not a friction fit — a wand that stops seating is the most common pull-down complaint, and a magnet does not wear the way a plastic collar does
• +Spout reach of 9-3/16" clears the far side of a standard 22-inch front-to-back sink
• +Diamond Seal keeps water off the valve, which is what the lifetime warranty is really protecting
• +Deck plate in the box, so a three-hole sink needs no extra part

What does not

• −1.8 gpm is higher than the 1.5 gpm most competitors now ship, which matters if your area caps flow rate
• −Zinc body rather than brass — normal at this price, but this is not a forever faucet
• −No independent lab publishes durability figures for this model, so we cannot tell you how the finish looks at year five

Skip it if

Skip it if your sink is a shallow bar sink: at 14-7/8" overall the arc will splash in a basin under about seven inches deep.

Check price on Amazon→

#ad Affiliate link · We publish no price; Amazon shows the current one

Raw specifications: Delta’s own page for the Delta Leland 9178-AR-DST.

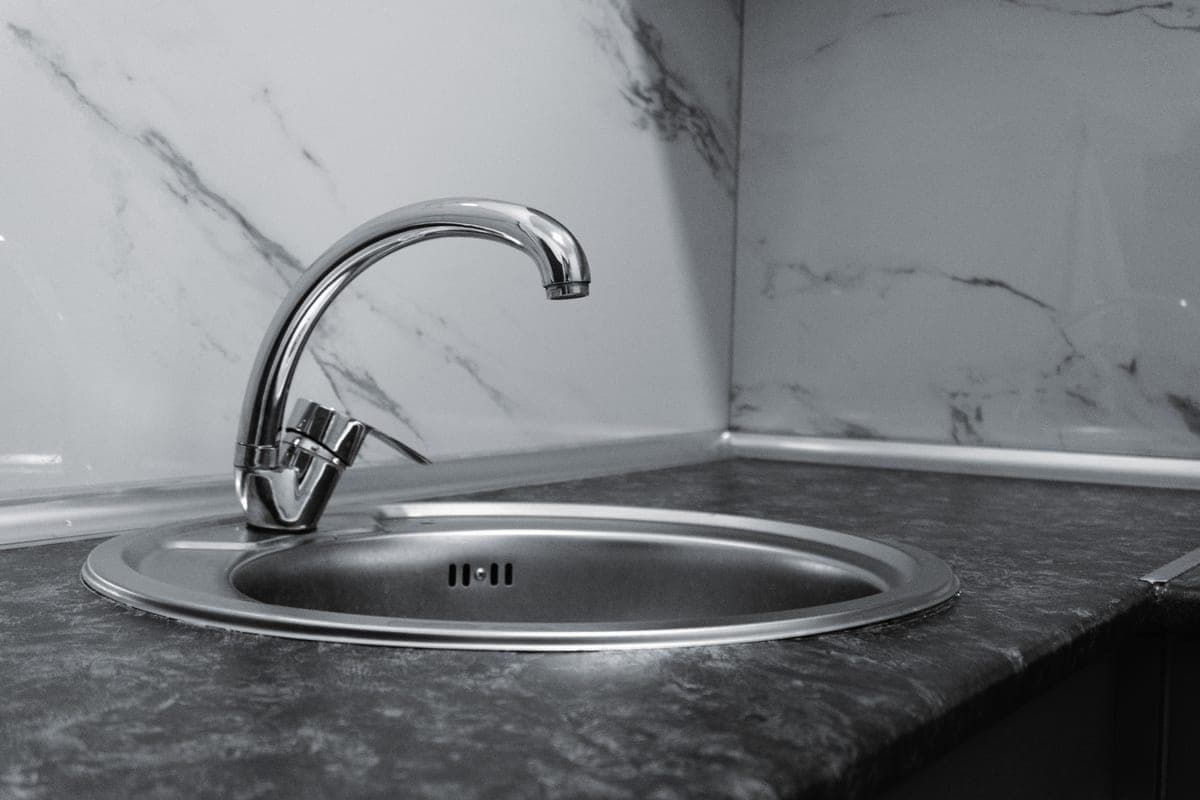

Photograph shows the product category, not this specific unit. We do not republish manufacturer product photography.

3. Easiest in a shallow cabinet

Moen Renzo CA87316C

Moen · Best for low window sills and tight clearance

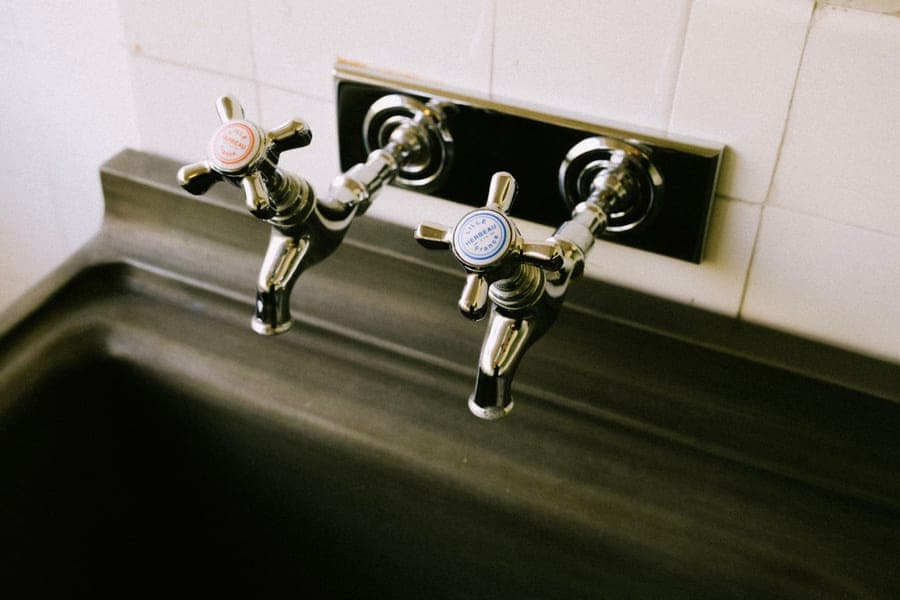

The faucet for a sink under a window. Its spout stands 5.56 inches tall — low enough to clear a sill that stops a high-arc faucet dead — while still reaching 9.63 inches, which is further than several faucets twice its height. In a rental or a low-clearance kitchen that combination is hard to find.

Published specifications

Spout height

5.56" source

Spout reach

9.63" source

Type

Low-arc pullout source

Flow rate

1.5 gpm max source

Installation

Duralock quick connect; deck plate included source

Connection

3/8" compression source

Warranty

Moen limited lifetime source

What works

• +A 5.56-inch spout fits under window sills and wall cabinets that rule out a high arc
• +9.63 inches of reach is long for such a low spout — most low-arc faucets give up reach too
• +Pull-out wand, so the low spout does not cost you spray range
• +Moen's parts channel applies, which is the real argument for buying Moen at any price

What does not

• −A low spout means no clearance for tall pots — you fill them in the sink or at an angle
• −Moen does not state a body material for this model, so whether it is brass or plated zinc is unpublished — and that is the figure that tells you how long a faucet lasts
• −The CA87316C part number is the chrome one, and chrome shows water spotting; Spot Resist Stainless exists in the Renzo line but under a different model number

Skip it if

Skip it if you regularly fill stock pots at the sink. Buy height, and put the faucet somewhere with headroom.

Check price on Amazon→

#ad Affiliate link · We publish no price; Amazon shows the current one

Raw specifications: Moen’s own page for the Moen Renzo CA87316C.

Photograph shows the product category, not this specific unit. We do not republish manufacturer product photography.

4. Best for an old three- or four-hole sink

Moen Sombra 87701SRS

Moen · Best for pull-out range plus a matching dispenser

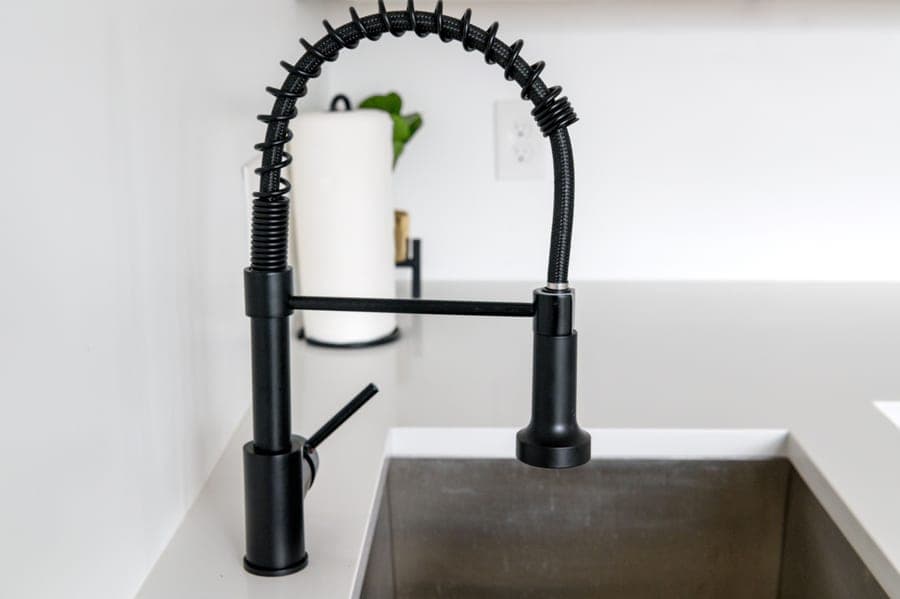

The pull-out we would fit, and the one that quietly solves a second problem: it ships with a matching soap dispenser, so a three-hole sink converting to a single-hole faucet has something to put in the spare hole that was designed alongside it. A 59-inch hose and a 9.93-inch spout give it genuine range.

Published specifications

Flow rate

1.5 gpm max source

Spout height

9.93" source

Spout reach

8.45" source

Hose length

59" source

Mounting

One to four holes; deck plate included source

Included

Matching soap dispenser source

Spray

Power Clean — aerated stream and rinse source

Connection

3/8" compression source

What works

• +A 59-inch hose reaches a bucket on the floor, which is the whole reason to choose pull-out over pull-down
• +The soap dispenser is matched and included rather than an approximate-finish afterthought
• +One-to-four-hole mounting covers essentially every sink drilling
• +Spot Resist Stainless is the finish to have in hard water

What does not

• −8.45 inches of reach is mid-range — a wide double bowl will want more
• −Moen does not publish a warranty term on this product page, so we do not state one
• −Pull-out wands sit lower, so a tall stock pot is a tighter fit than under a high-arc pull-down

Skip it if

Skip it if your sink is deep and you mostly wash tall cookware — a high-arc pull-down gives you clearance this does not.

Check price on Amazon→

#ad Affiliate link · We publish no price; Amazon shows the current one

Raw specifications: Moen’s own page for the Moen Sombra 87701SRS.

Photograph shows the product category, not this specific unit. We do not republish manufacturer product photography.

5. The tool none of them replaces

RIDGID Model 1017 telescoping basin wrench

RIDGID · Best for any faucet removal or install

The one tool that decides whether a faucet swap is a two-hour job or a six-hour one. Faucet mounting nuts sit behind the sink where no normal wrench reaches; a basin wrench's spring-loaded head ratchets one-handed in that space. The telescoping shank is what gets you from a shallow vanity to a deep kitchen cabinet.

Published specifications

Jaw capacity

3/8" to 1-1/4" source

Shank length

Telescopes from 10" to 17" source

Jaws

Spring-loaded alloy steel, one-handed ratcheting source

Head

Tension plug holds the head at any angle up to 90 degrees source

What works

• +The 10-to-17-inch telescoping shank covers both a shallow bathroom vanity and a deep kitchen base cabinet
• +One-handed ratcheting matters, because the other hand is holding a flashlight
• +Alloy steel jaws grip a plastic mounting nut without crushing it
• +The head locks at an angle, which is how you reach a nut behind a disposal

What does not

• −A single-purpose tool that lives in a drawer between faucet jobs
• −A badly corroded nut still needs penetrating oil and patience, not a better wrench
• −No substitute for clearing the cabinet out before you start

Skip it if

Skip it if a plumber is fitting the faucet — they own one, and you would use yours perhaps twice a decade.

Check price on Amazon→

#ad Affiliate link · We publish no price; Amazon shows the current one

Raw specifications: RIDGID’s own page for the RIDGID Model 1017 telescoping basin wrench.

The mounting nut. It sits directly behind the sink basin, four to eight inches down and out of reach of every normal wrench, and it has to come off the old faucet and go onto the new one. A basin wrench is the tool designed for exactly that space: RIDGID publishes a 3/8-inch to 1-1/4-inch jaw capacity on the Model 1017 and a shank that telescopes from 10 to 17 inches, with spring-loaded jaws that ratchet one-handed — which matters, because the other hand is holding a flashlight.

The rest of the work is preparation rather than tooling: empty the cabinet, put a towel and a light in it, have a bucket for the water still sitting in the lines, and photograph the old connections before you take them apart. The full sequence, including the order to tighten things in, is on how to install a kitchen faucet.

1. 1Count your sink's holes and their spacing, then check the faucet mounts to that number with the deck plate it ships with.
2. 2Open and close both shutoff valves under the sink now, not on installation day. A valve that will not close changes the whole job.
3. 3Check the supply fitting is 3/8-inch compression — all four picks here are — and measure whether your existing supply lines will still reach the new faucet's inlet.
4. 4Measure deck-to-sill or deck-to-cabinet clearance and subtract an inch for lifting the spray wand out of its dock.
5. 5Confirm the finish is the one you want on a part number, not a product family: Moen offers the Renzo in Spot Resist Stainless, but the CA87316C is the chrome one.
